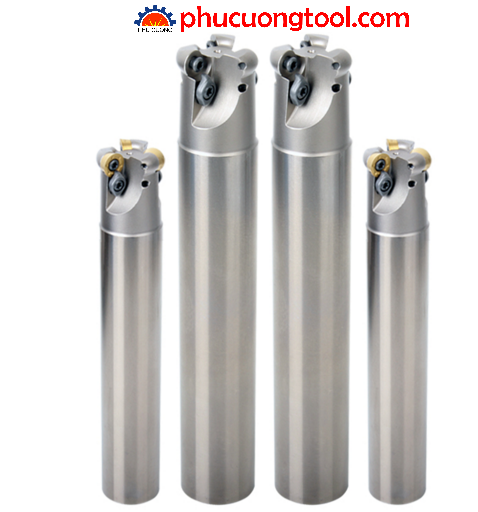

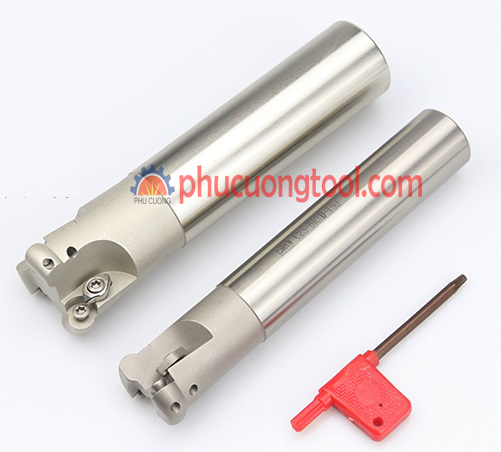

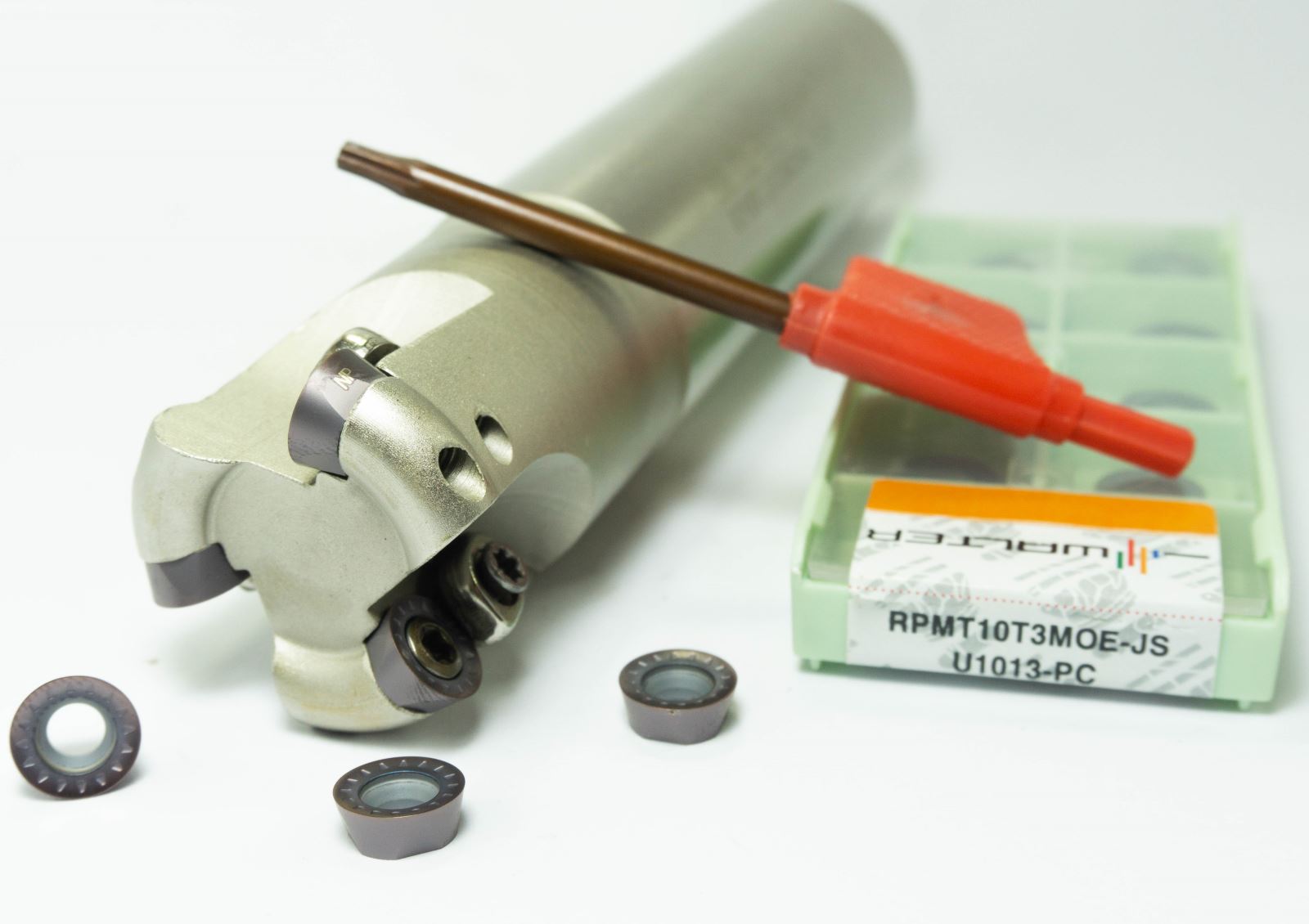

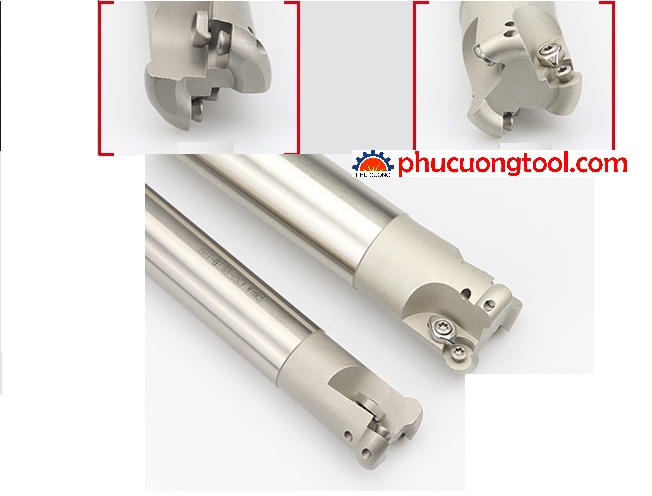

Cán dao phay EMRW

Thương hiệu: Trung Quốc
Xuất xứ: Trung Quốc
Giá bán: Liên hệ

Mô tả sản phẩm
Bình luận

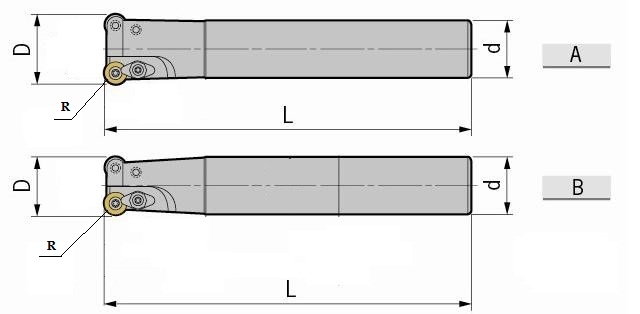

QUY CÁCH	Đường kính đầu dao (D/mm)	Đường kính cán dao (d/mm)	Chiều dài cán dao (L/mm)	Góc cắt dao (R/mm)	Lắp mảnh cắt
EMR C10-4R10-120-1T	10	10	120	R4	RPMT 08T2
EMR C12-4R12-130-1T	12	12	130	R4
EMR C12-4R13-130-1T	13	12	130	R4
EMR C16-4R16-150-2T	16	16	150	R4
EMR C16-4R16-200-2T	16	16	200	R4
EMR C16-4R17-150-2T	17	16	150	R4
EMR C16-4R17-200-2T	17	16	200	R4
EMR C20-4R20-150-2T	20	20	150	R4
EMR C20-4R20-200-2T	20	20	200	R4
EMR C20-4R21-150-2T	21	20	150	R4
EMR C20-4R21-200-2T	21	20	200	R4
EMR C20-5R20-150-2T	20	20	150	R5	RPMT 10T3
EMR C20-5R20-200-2T	20	20	200	R5
EMR C20-5R21-150-2T	21	20	200	R5
EMR C20-5R21-200-2T	21	20	200	R5
EMR C20-5R25-150-2T	25	20	150	R5
EMR C20-5R25-200-2T	25	20	200	R5
EMR C24-5R25-150-2T	25	24	150	R5
EMR C24-5R25-200-2T	25	24	200	R5
EMR C25-5R25-150-2T	25	25	150	R5
EMR C25-5R25-200-2T	25	25	200	R5
EMR C25-5R25-250-2T	25	25	250	R5
EMR C32-5R25-300-2T	25	32	300	R5
EMR C25-5R26-150-2T	26	25	150	R5
EMR C25-5R26-200-2T	26	25	200	R5
EMR C25-5R26-250-2T	26	25	250	R5
EMR C25-5R30-150-2T	30	25	150	R5
EMR C25-5R30-200-2T	30	25	200	R5
				R5
EMR C32-5R35-150-3T	35	32	150	R5	RPMT 10T3
EMR C32-5R35-200-3T	35	32	200	R5
EMR C32-5R35-250-3T	35	32	250	R5
EMR C32-5R35-300-3T	35	32	300	R5
EMR C32-5R35-350-3T	35	32	350	R5
EMR C32-5R35-400-3T	35	32	400	R5
EMR C32-5R40-150-3T	40	32	150	R5
EMR C32-5R40-200-3T	40	32	200	R5
EMR C32-5R40-250-3T	40	32	250	R5
EMR C32-5R40-300-3T	40	32	300	R5
EMR C32-5R40-350-3T	40	32	350	R5
EMR C32-5R40-400-3T	40	32	400	R5
EMR C32-5R50-150-4T	50	32	150	R5
EMR C32-5R50-200-4T	50	32	200	R5
EMRW C32-6R32-150-2T	32	32	150	R6	RPMT 1204
EMRW C32-6R32-200-2T	32	32	200	R6
EMRW C32-6R32-250-2T	32	32	250	R6
EMRW C32-6R32-300-2T	32	32	300	R6
EMRW C32-6R35-150-2T	35	32	150	R6
EMRW C32-6R35-200-2T	35	32	200	R6
EMRW C32-6R35-250-2T	35	32	250	R6
EMRW C32-6R35-300-2T	35	32	300	R6
EMRW C32-6R40-150-3T	40	32	150	R6
EMRW C32-6R40-200-3T	40	32	200	R6
EMRW C32-6R40-250-3T	40	32	250	R6
EMRW C32-6R40-300-3T	40	32	300	R6
EMRW C32-6R40-400-3T	40	32	400	R6
EMRW C32-6R50-150-4T	50	32	150	R6
EMRW C32-6R50-200-4T	50	32	200	R6
